72W power, 16 pixel segments, 180° beam angle, IR, App controlled, wired and wireless (CRMX) DMX, built-in rechargeable LG battery, IP65. Includes stand, 2 eye bolts, 2 holders.

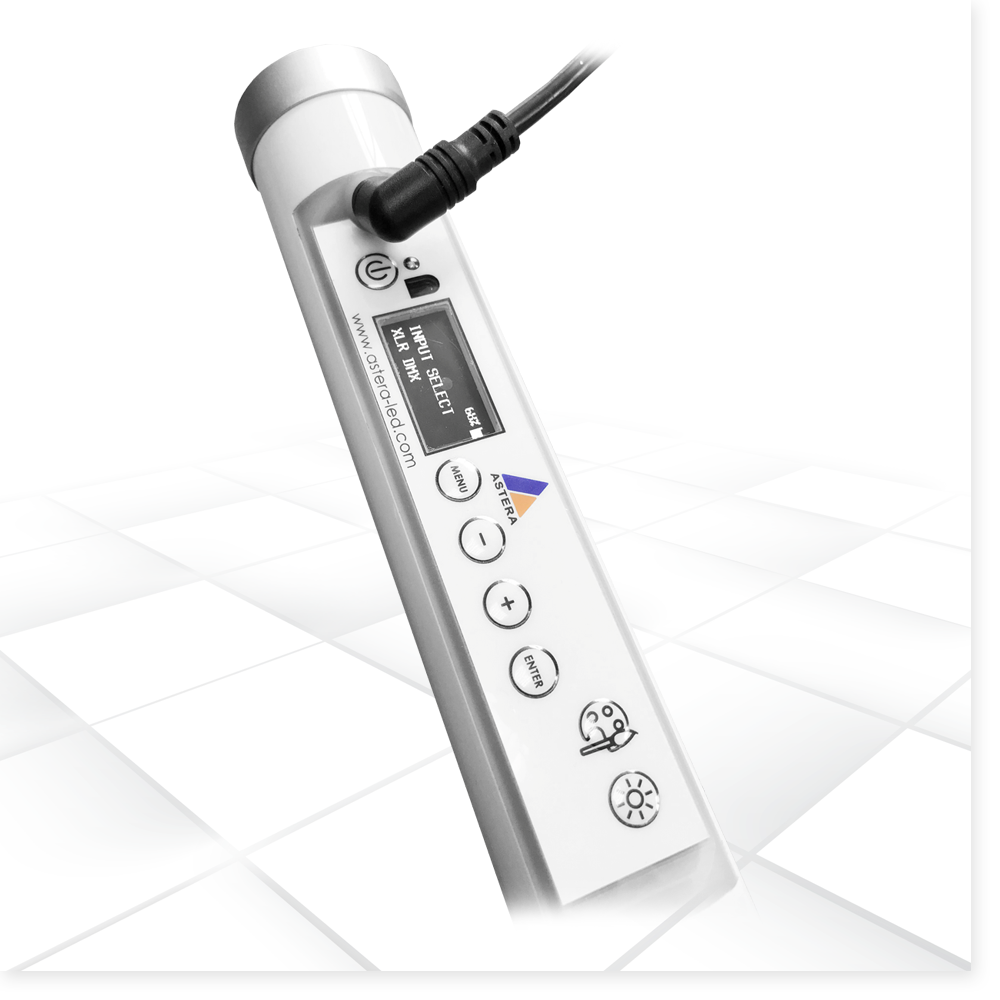

Film Lighting Tube | Titan Tube was especially designed for the Film, Broadcasting and Cinema industries. Optimized for an ultra-high TLCI, a very high CRI and peak brightness, colors as well as Hue, Saturation and Intensity can be set directly on the tube. In addition, the Titan Tube now accepts wired DMX via a special power/data combination cable.
Colors: | Red, Green, Blue, Mint, Amber |
Total LED power: | 72 W |
Maximum power draw: | 48 W |
TLCI: | ≥96 |
CRI: | ≥96 |
Luminous flux: | 2900Lm |
Emittance @1m: | 785Lx |
Strobe: | 0-25Hz |
Beam Angle: | 120˚ |
Field Angle: | 180˚ |
Pixels: | 16 |
Backside Display: | with HSI control |
Infrared | |
Wireless Modules: | 865-870MHz | 902-928MHz | 2.4GHz |
Range: | 300m | 330 Yards |
DMX: | Wired + Wireless (CRMX & W-DMX) |
Battery: | LG Chem Lithium-ion |
Battery Lifetime: | 70% after 300 cycles |
Battery Runtime: | Up to 20 hours |
LED Lifetime: | 50.000 Hours |
Charging time (nominal): | 3 Hours |
Input Voltage: | 24V 2A |
Housing: | Polycarbonate, metal endcap |
IP Rating: | IP65 |
Relative humidity: | 0-100% |
Operating Temperature: | 0-40 ˚C | 32-104 ˚F |
Weight: | 1.35kg |3Lbs |
Dimensions: | Ø42 x 1035mm | Ø1.6” x H40.7” |
This light head works with following Accessories:
